Koden’s CVS1410 digital fishfinder sounder features superior clutter suppression  and signal to noise ratio with Koden Digital Filtering (KDF™), faster update rate for increased performance in shallow water.

Detect fish close to the bottom at depth never before possible with the high frequency transducer.

The affordable 1kW CVS-1410 series equals or beats the performance of the conventional sounders with 3 times the power output.

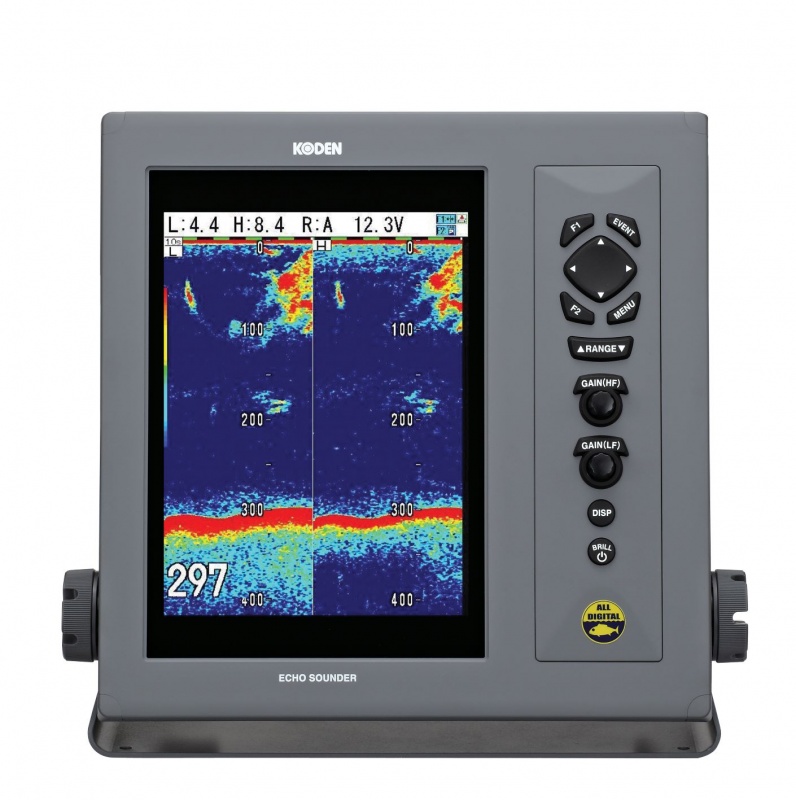

10.4″ Digital COLOUR LCD FISH FINDER CVS1410/1410 HS  High Sensitivity


Key Features

Choice of either Standard or High Sensitivity CVS1410

  • Cost effective CVS-1410 as standard model or the CVS-1410HS as high sensitivity model – depending on your target fish, fishing method, fishing area and usage.
  • The Auto Function on this sounder takes the guesswork out of operating the sounder. Even a novice user can achieve professional results by letting the CVS-1410 pick the optimal settings for Range, Shift and TVG.
  • Standard or High Sensitivity –  2 models:  the cost effective CVS-1410 standard or the CVS-1410HS as high sensitivity model–depending on your target fish, fishing method, fishing area or usage.
  • Detection area display – know exactly the bottom area covered by the low and high frequency sound beams. This can help target the fish directly under the boat or off to the side.
  • Exclusive Sona-Tone™ identifies what is under your boat with different sounds for fish and schools of fish.

Product available as:
CVS1410 – Digital sounder 10.4″ colour LCD 50/200kHz  1kW
CVS1410HS – Digital sounder 10.4″ colour LCD 50/200kHz 1kW + TDM-031D transducer


Main Specifications

Main functions Zoom, Auto, A-scope,
Background colors: 64, 16, 8 colors,
Detection area display,
Store image,
Fishing Hot Spot,
Fish information,
External trigger
Basic range 2.5 to 2000 Meter,10 to 6000 Feet,2.5 to 1100 Fathom/ Italia,n Fathom
Power Output (RMS) 1 kW
Output frequency Dual 50/200 kHz
Water protection IPX5
Dimensions 330.2(H) x 364(W) x 174.5(D) mmWeight 7.5 kg
Power supply 10.8 to 31.2 VDC
