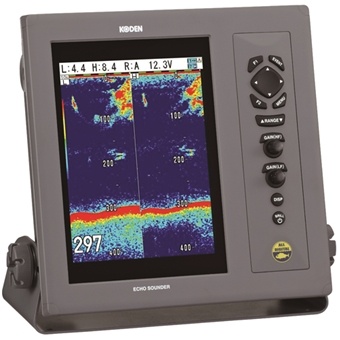

KODEN CVS-1420
Find your best setting for your best fishing!
10.4″ Broadband Digital Echo Sounder
Koden CVS-1420 10.4" 1-3kW colour LCD Echo sounder with Hardness output offers advanced filtering capabilities with its high tech digital signal processor
Key Features

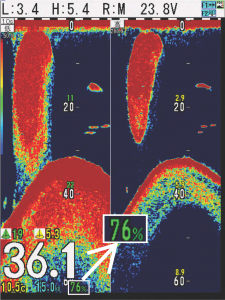

Bottom Hardness Display
Easily identify different substrates using bottom hardness feature that displays bottom composition by percentage.
Transmission power of 1 kW to 3 kW
High power 3kw output is available. It is suitable for fishing in deep water.
Selectable Frequencies
Compatible with fixed frequency transducer and broadband transducer. Wide range of frequencies can be selected. This allows you to search for fish at the optimal frequency for the species you are targeting.
Koden Digital Filtering (KDF™)
The Koden Digital Filtering (KDF™) technology has enabled low noise, high resolution and outstanding distance of detection.
Detection Area Display
Know exactly the bottom area covered by the low and high frequency sound beams. This can help you target the fish directly under the boat or off to the side.
Store Images
Stores up to 10 screen images in built-in memory for recall later by a single touch.
Auto Function
Takes the guesswork out of operating the sounder. Even a novice user can achieve professional results by letting the CVS-1420 pick the optimum settings for such functions as Range, Shift and TVG.
Main Specifications
Main functions: Interference rejection, Color rejection, VRM, Noise reduction, White line, Draft correct, Water temperature correct, Boat speed correct, Store image (10 images), Fishing Hot Spot, Event memory, Simple plotter, Panel illumination, Power reduction, External trigger, Fish information, Detection area display, Bottom Hardness display
Background colors: Marine blue, Blue, Black, White, Nighttime color, other 5 colors
Basic Range: 2.5 to 2000 Meter, 10 to 6000 Feet, 2.5 to 1100 Fathom/ Italian Fathom
Power Output (RMS): 1 to 3 kW (Depends on Transducer)
Output Frequency: 24kHz to 220kHz
Water Protection: IPX5
Dimensions 320 (H) x 364 (W) x 184 (D) mm
Weight: 7.8 kg
Power Supply: 10.8 to 31.2 VDC
