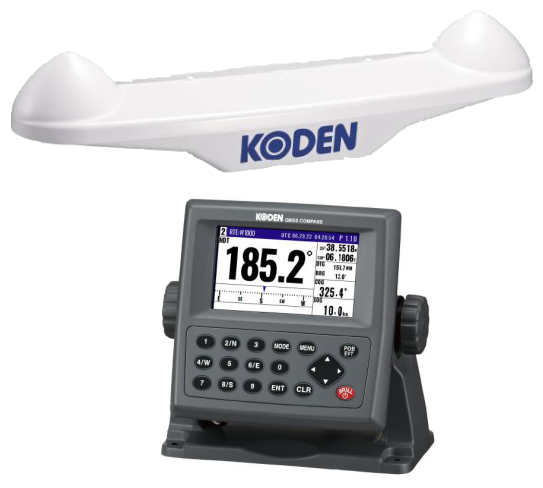

KODEN KC-1400
Safe navigation with multi-GNSS compass system
Navigate confidently using the Koden KC-1400 GPS-compatible device, delivering accurate heading, position and speed data for your marine adventures. Enjoy fast tracking and a clear 4.3-inch color display, perfect for any fishing trip.
Key Features

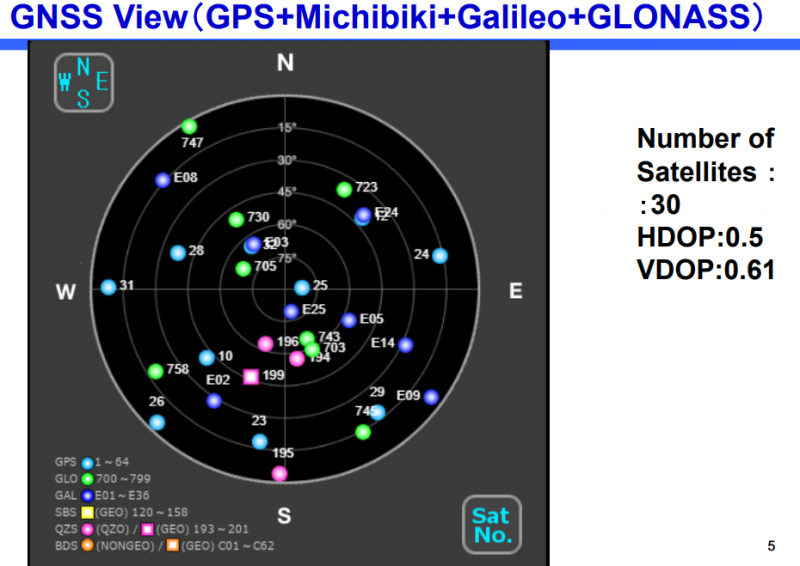

Compatible with GPS / QZSS, Galileo, BeiDou, GLONASS
Highly accurate heading, position, speed, rolling, pitching and heaving data
Get the information you need quickly and accurately for marine activities
72 Channel Receiver
Stable and fast tracking capability
10,000 waypoints, 100 routes, and 3,000 track points

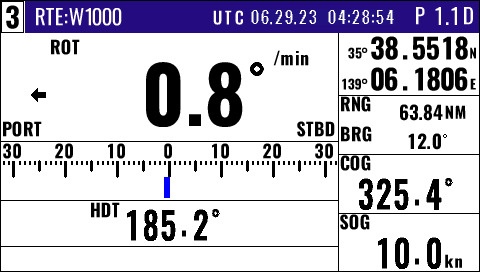

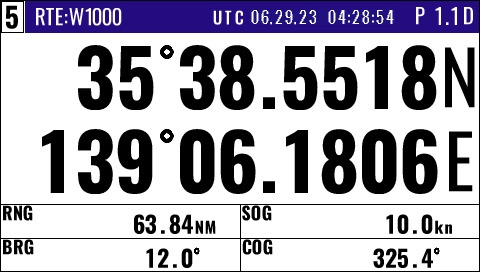

Esthetically pleasing 4.3-inch high resolution Color LCD
4.3-inch Color LCD Display provides high visibility even under bright sunlight.
Built-in high-precision gyro sensor for backup
Equipped with four data ports of NMEA0183 x 3 (NMEA0183x5 with JB-35 (option) connected), LAN (IEC61162-450) x 1
SBAS (MSAS / WAAS / EGNOS) enabled
Main Specifications
Receiving Frequency: 1575.4200 MHz / 1561.0980 MHz / 1602.5625 MHz
Receiving Channel: 72-channel
Sensitivity: Better than -148 dBm
Accuracy: Position GPS: 10m (2drms, SA: OFF, PDOP: 3 or less) SBAS: 3m (2 drms, SA: OFF, PDOP: 3 or less); Heading 0.5° rms; Velocity 1 m / sec (rms, SA: OFF, PDOP: 3 or less)
