KODEN KGC-222

View Brochure Order

KGC-222 GPS Compass

Key Features

  • Two main components: Display and antenna
  • Display unit has processor, receiver and LCD disply built-in
  • Pitch / roll and heaving data output
  • 3 heading data output ports expandable to 5 ports
  • Internal electronic compass as back up sensor – enables back up sensor to output heading even if the GPS signals are interrupted eg. boat passing under a bridge
  • Highly accurate heading, position and speed data readily available. When connected with an echo sounder with heaving compensation function (eg.CVS FX-1), a stable sea bottom is acheived without the effect from wave and heave motion
  • stable and fast tracking capability
  • Sensitivity: better than -130dBm
  • NMEA-0183 Ver2.0 output data format
  • Optional indicator for heading presentation in analog and digital format

Main Specifications:

Receiving frequency:      1575.42 MHz +/- 1 MHz
Receiving channel:          Parallel 16 channel
Heading accuracy:          1° rms
Heading resolution:         0.1°
Output data level:          RS-422
Power consumption:       9W or less at 24 VDC
Water protection:
GPS antenna                 IPX6
Display unit                    IPX4

Standard Equipment:

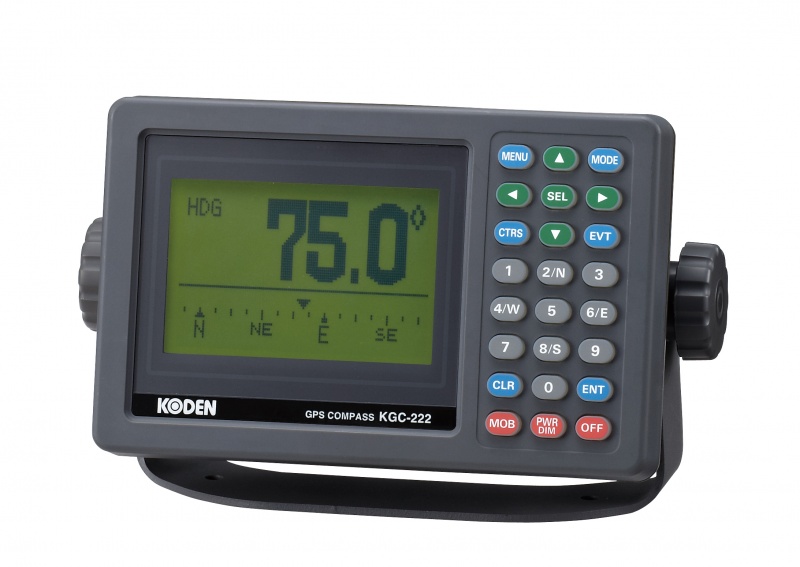

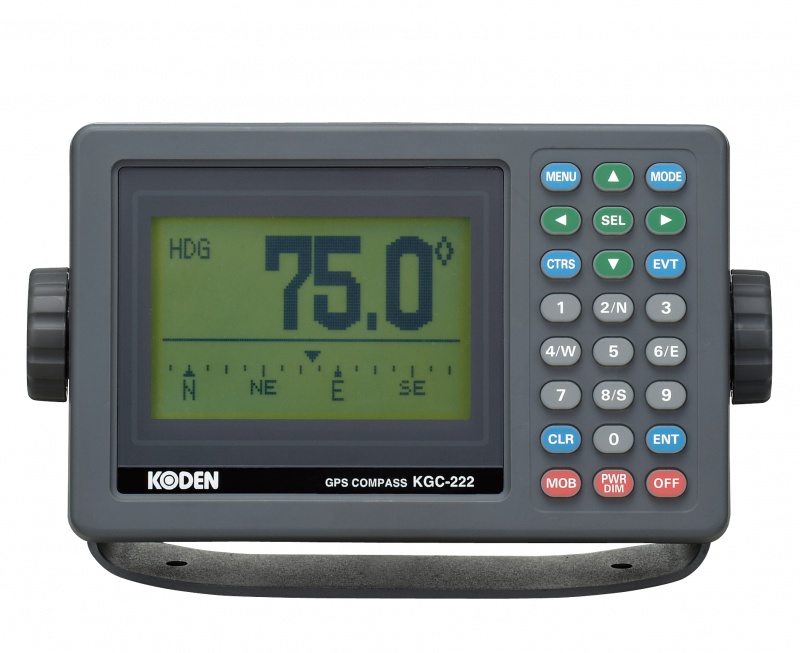

Display Unit

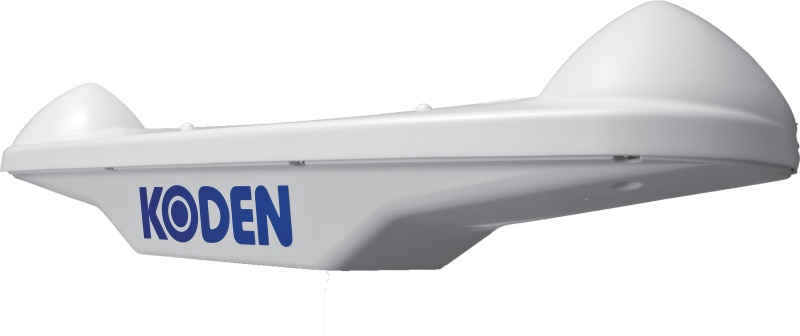

GPS Antenna
1.8M DC Power cable
15M Antenna cable
Installation material and operation manual

Options: connecting cable, Junction box, power rectifier, AC power cable, Flush Mount Kit, Antenna cable extension kit, converstion cable, connector
