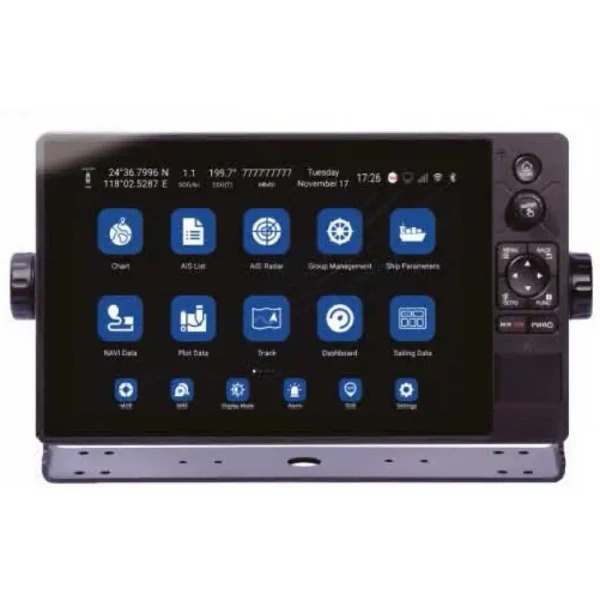

KODEN KSD-1100 Multi Function Display
Take your vessel’s navigation to the next level with our all-in-one Multi-Function Display, featuring a built-in Class B AIS transceiver and a host of powerful features for safer, more efficient maritime operations. This display combines real-time vessel data, navigation tools, video surveillance, and charting capabilities, offering a seamless and intuitive experience on the water.
Optimize your vessel’s performance with this cutting-edge multi-function display. Whether you’re navigating busy harbors or tranquil waters, it provides the tools you need to stay informed, safe, and efficient on every voyage.
Key Features
AIS Class B
Built-in Class B AIS transceiver essential for safe navigation.
Various Screen Displays

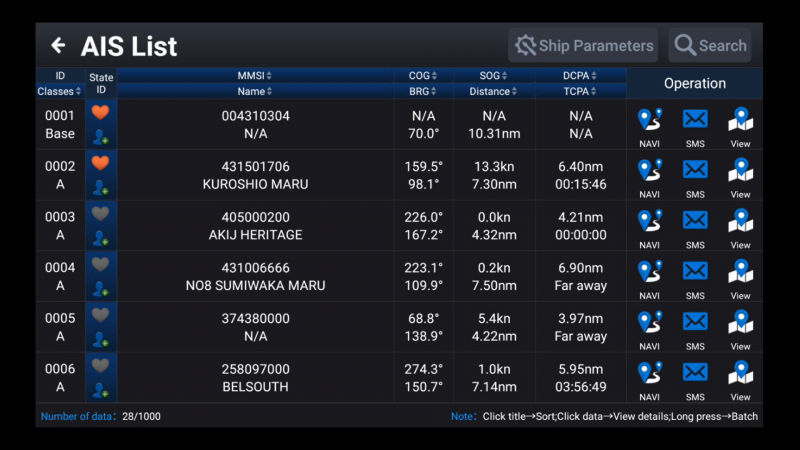

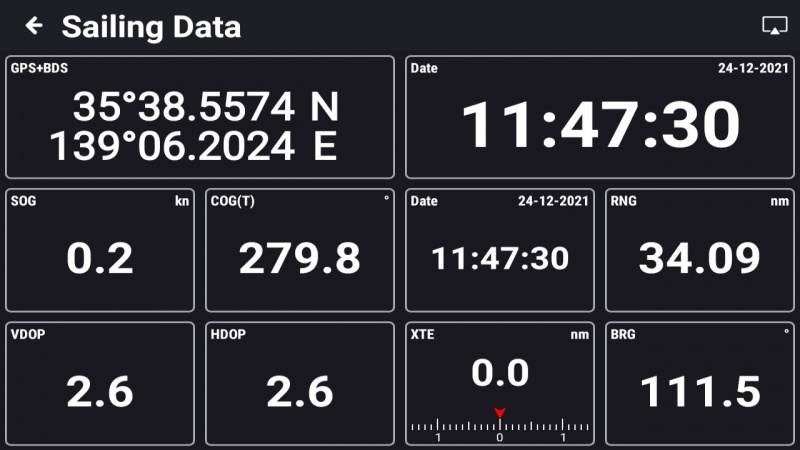

AIS radar screen which is easy to get the AIS information using ring markers / Dashboard to display various data / NAVI and PLOT data management / Tide information, etc., are possible.
Video Surveillance
By installing network cameras*, it is possible to monitor onboard and outboard conditions up to four screens.
*Owner supplied

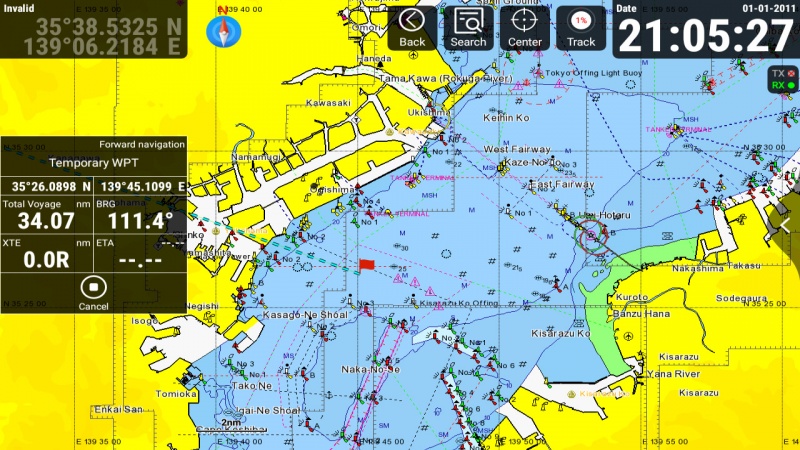

Chart Display
Support variety charts of C-MAP (MAX), original chart, ENC chart.
It also supports to overlay satellite images on the chart.

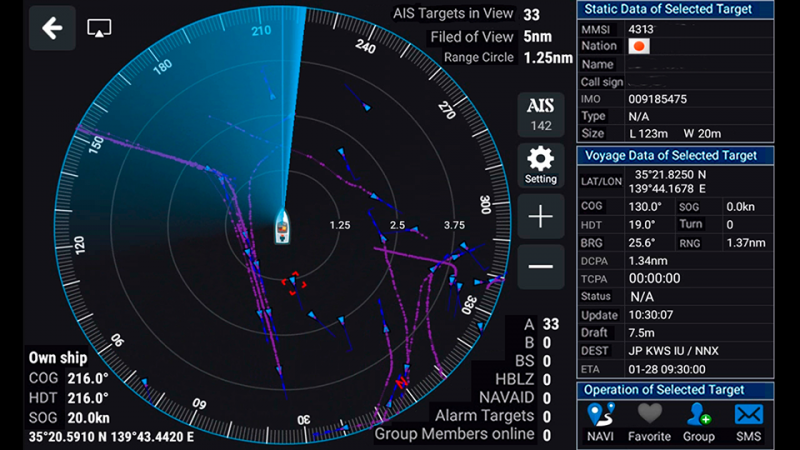

AIS Radar
AIS targets overlaid on the chart, variable rang rings around own ship is shown by setting radius, it is for user reference easily to observe AIS targets real-time dynamic information.
Dual Monitor
You can connect to a sub-monitor to display a screen different from the main screen.
Comfortable Operations
Easy operation with touch screen and mouse *. It also has a control panel.
*Owner supplied
Videos
Features of Multi Function Display
Multi Function Display
Main Specifications
Output Power: 2 W
Display Size & Type: 10.1 inch Capacitive multi touch screen
Frequency: 156.025MHz to 162.025 MHz
Bandwidth: 25 kHz
Dimensions: 195(H) x 338(W) x 75(D)mm
Weight: 2.1kg
Power Supply: 10.8 VDC to 31.2 VDC
