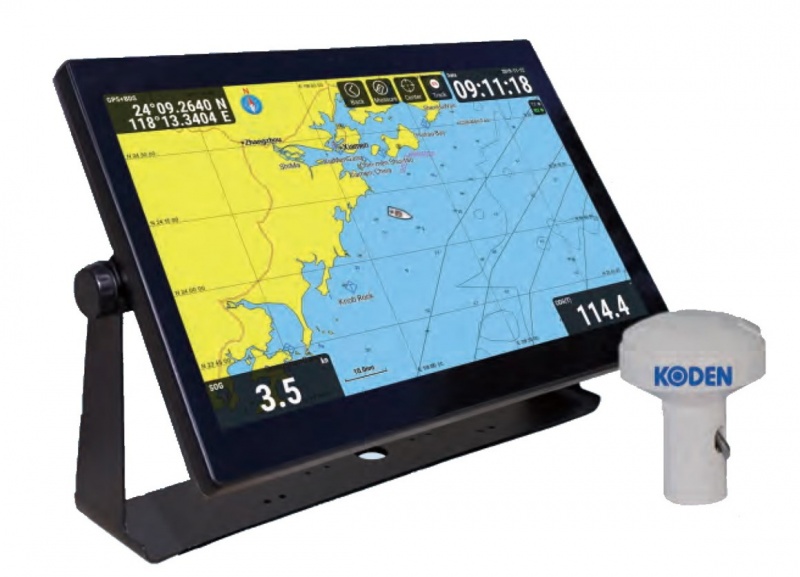

KODEN KSD-1210 Multi Function Display
Ensure safe and efficient navigation with the KODEN KSD-1210 Multi-Function Display, designed to integrate essential navigation and surveillance features into one powerful device. Whether you are navigating through busy waters or monitoring the onboard conditions, this display provides comprehensive information at your fingertips.
Equip your vessel with this advanced multi-function display for a comprehensive, reliable, and intuitive navigation experience. Stay informed, stay safe, and navigate with confidence.
Key Features

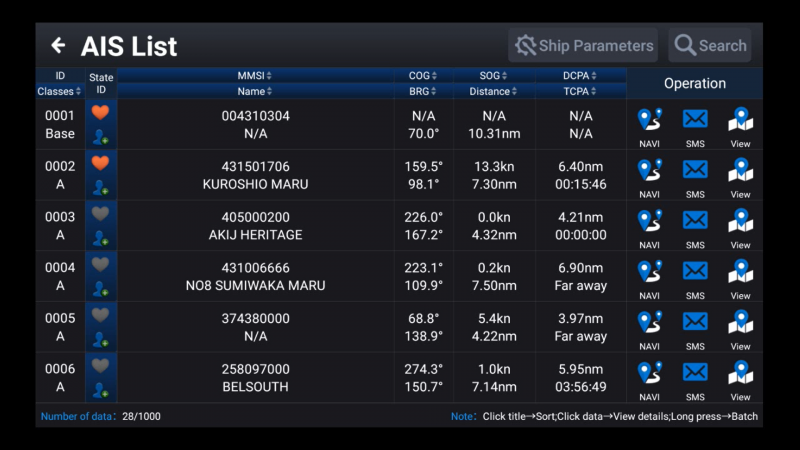

AIS Class B
Built-in Class B AIS transceiver essential for safe navigation.
Various Screen Displays

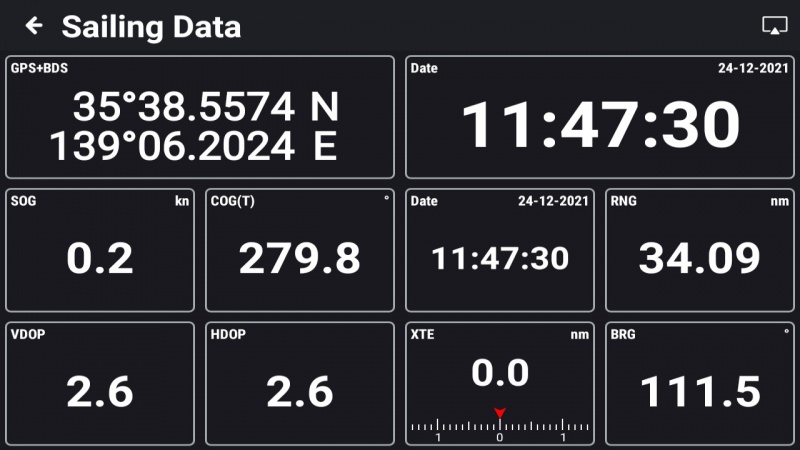

AIS radar screen which is easy to get the AIS information using ring markers / Dashboard to display various data / NAVI and PLOT data management / Tide information, etc., are possible.
Video Surveillance
By installing network cameras*, it is possible to monitor onboard and outboard conditions up to four screens.
*Owner supplied

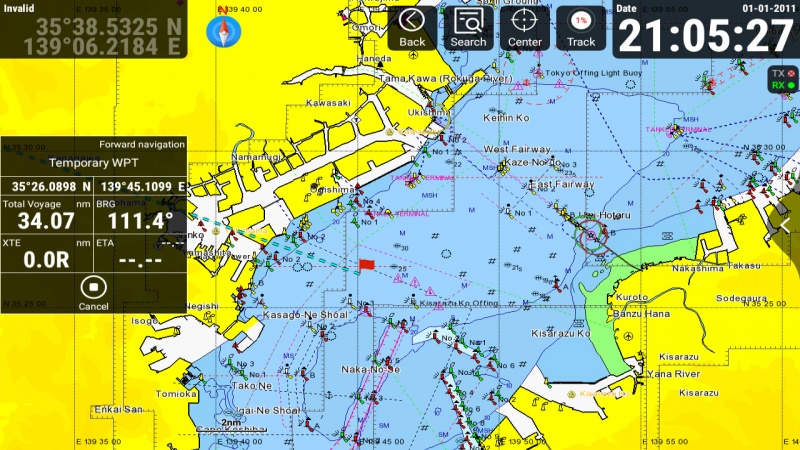

Chart Display
Support variety charts of C-MAP (MAX), original chart, ENC chart. It also supports to overlay satellite images on the chart.

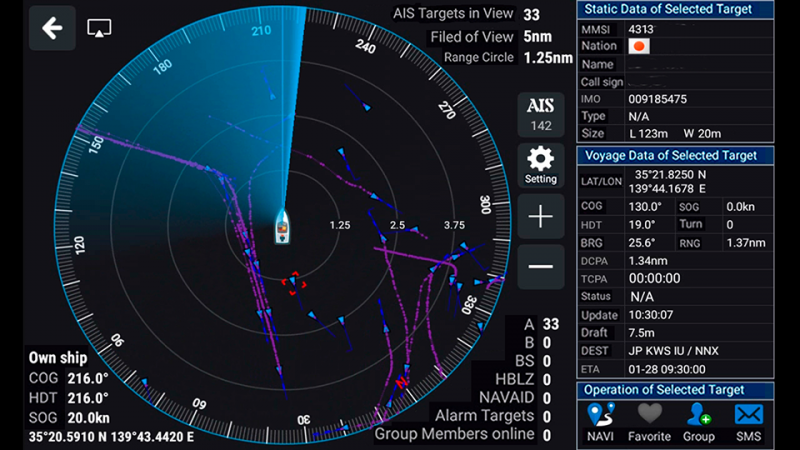

AIS Radar
AIS targets overlaid on the chart, variable rang rings around own ship is shown by setting radius, it is for user reference easily to observe AIS targets real-time dynamic information.
Dual Monitor
You can connect to a sub-monitor to display a screen different from the main screen.
Comfortable Operations
Easy operation with touch screen and mouse *
*Owner supplied
Videos
Features of Multi Function Display
Multi Function Display
Main Specifications
Output Power: 2 W
Display Size & Type: 21.5 inch Capacitive multi touch screen
Frequency: 156.025MHz to 162.025 MHz
Bandwidth: 25 kHz
Dimensions: 384(H) x 531(W) x 125(D)mm
Weight: 7.4kg
Power Supply: 21.6 VDC to 31.2 VDC
