KODEN MDC-2000 Series

View Brochure Order

MDC2000 Series

Smart Selection for safe Navigation


10.4″ COLOUR LCD RADAR MDC2041

10.4″ colour LCD radar with Dual Range Display and True Trail function

MDC-2041:  4 kW / 36 nm / 2 ft Radome
MDC-2040-3: 4kW / 48 nm / 3 ft Open antenna
MDC-2040-4: 4kW / 48 nm / 4 ft Open antenna



Key Features

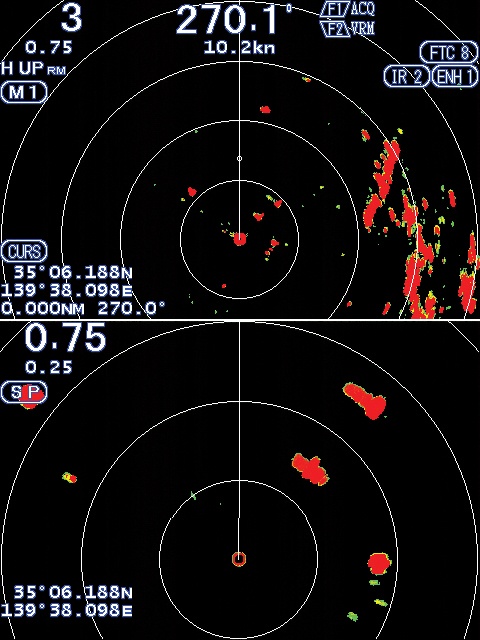

Dual range display -Exclusive dual range radar feature lets you view split screen display of both long and short-range targets simultaneously. It’s like having two radars in one

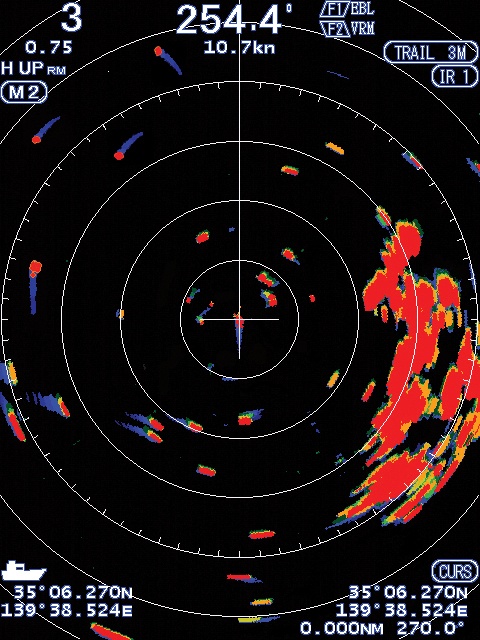

True trail function * - The display shows exactly the movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving. This makes it easy for you to distinguish moving from stationary objects


Real time smooth head-up indication- The picture moves smoothly in proportion to changing bearing

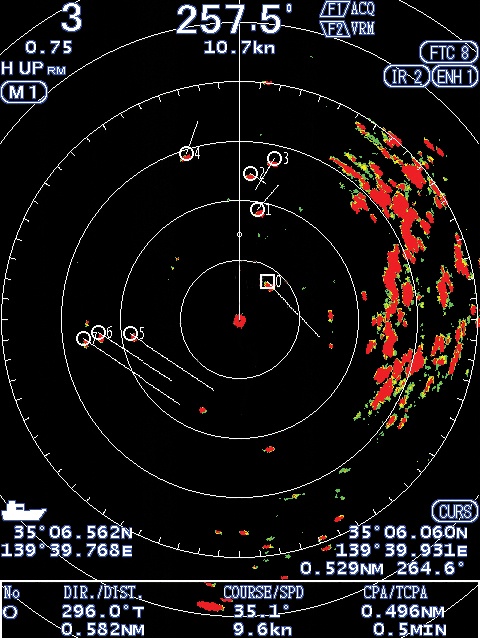

ATA with up to 50 targets as option * - The convenient ATA (Automatic Tracking Aid) function comes as option. The latest movements of other vessels can be shown instantaneously in vector form and numeric form, ensuring safe navigation. If the automatic acquisition zone is set, the targets up to 50 entering the zone will be locked automatically


AIS interface up to 100 targets as option * - When connected with an AIS receiver, the radar displays information on up to 100 targets including the name, heading, and speed of each vessel with an AIS transmitter mounted
