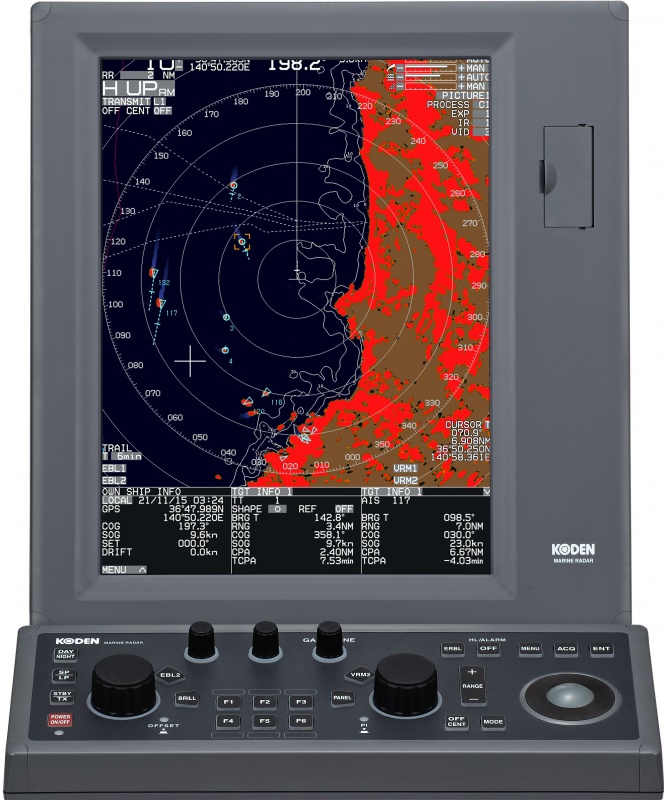

KODEN MDC-5500 Series
MDC 5500 Series
The new Koden MDC 5500 Series are high performance, multi-function radars offering the highest level of accuracy, stability, and reliability.
15 inch Series Radar with built-in ATA/AIS and chart overlay
MDC-5560-4 : 64nm / Open 4 ft / 6kW / 15m cable
MDC-5560-6 : 64nm / Open 6 ft / 6kW / 15m cable
MDC-5510-4 : 64nm / Open 4 ft / 12kW / 15m cable
MDC-5510-6 : 64nm / Open 6 ft / 12kW / 15m cable
MDC-5512-6 : 64nm / Open 6 ft / 12kW / 15m cable CE
MDC-5520-6 : 96nm / Open 6 ft / 25kW / 15m cable
Key Features
Clear image with high-speed sampling in short range
Auto gain with simple operation
Improved visibility by auto STC
Simple and easy operation remote trackball via USB
Built-in AIS interface for displays up to 1000 targets
Built-in TT (ARPA) tracks up to 100 targets
C-Map chart (NT MAX) can be overlaid on the radar screen (chart – owner supplied)
